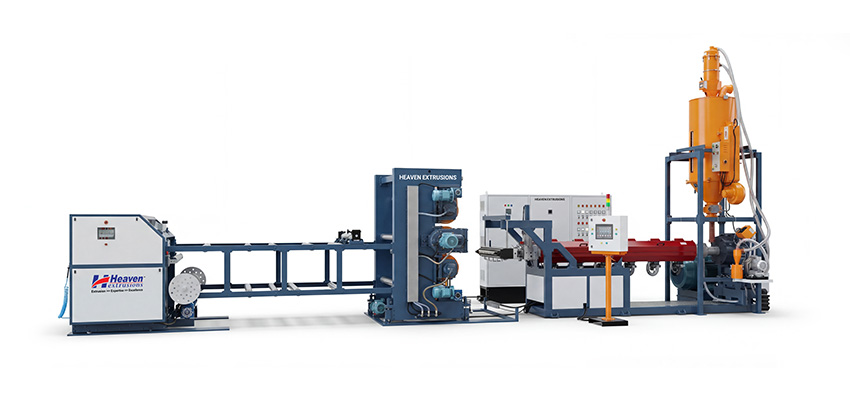

Features of PP/HDPE Sheet Extrusion Line.
- Movack Design, Multi Strand Die, and Air Knife Goddets
- Cheese winders are used to wind cheese bunches.
- Low Denier Yarns that are of top quality
- PP/HDPE has universal processing
- Needs lower maintenance
- Energy consumed is lower comparatively
- Exceptional versatility which provides ease of use Excellent cost competence
.jpg)

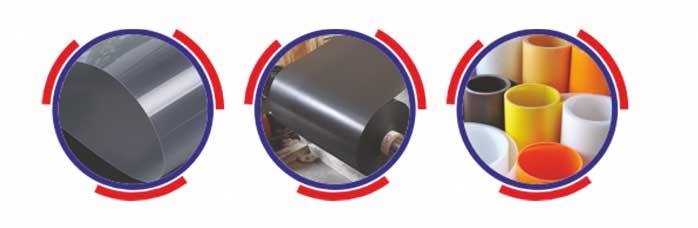

Applications of PP/HDPE Sheet Extrusion Line.
- Food Industries
- Construction Utilities
- Electrical Power Industry
- Chemical Industries
- Anti Erosion Industries
- Fabricated Tools like Chimney, Water Pipe, Chemical tanks, Gas Pipe
- Household applications - Coated Carpet sheets
- PP glass wool sheet used for Fabricating Chemical tanks
PP/HDPE Monofilament Plant
HEAVEN offering in range of products highly efficient Monofilament Lines to produce HDPE / PP Monofilament for manufacturing of:
- Ropes and Twines
- Tooth brush bristles
- Fishing Net
- Mosquito Net
- Doll hair & Wig hair
- Threads
- Knitting yarn
- Artificial grass
- Carpets
Monofilament Plant Technical Specification
| PP/HDPE Monofilament Line Model | HEMF 70 | HEMF 80 | HEMF 90 | |
|---|---|---|---|---|
| Screw Dia (In MM) | 70 | 80 | 90 | |
| L/D Ratio | 30:1 | 30:1 | 30:1 | |
| Max. Output(Kg./Hr.) | PP | 120 | 180 | 250 |
| HDPE | 115 | 150 | 200 | |
| Godet Width (MM) | 650 MM | 900 MM | 1200 MM | |
| Godet Dia (MM) | 320 MM Ø | 320 MM Ø | 320 MM Ø | |
| Dimension (L X W X H) Meters | 18 X 2.5 X 2.5 | 18 X 2.8 X 2.5 | 19 X 3 X 2.5 | |
| Optional Equipments |
|
|||
NOTE: THE INFORMATION IS PROVIDED FOR THE PURPOSE OF GUIDELINE & INDICATION ONLY AND DOESN’T FORM ANY KIND OF COMMITMENTS.
