Cast Embossed Film Extrusion

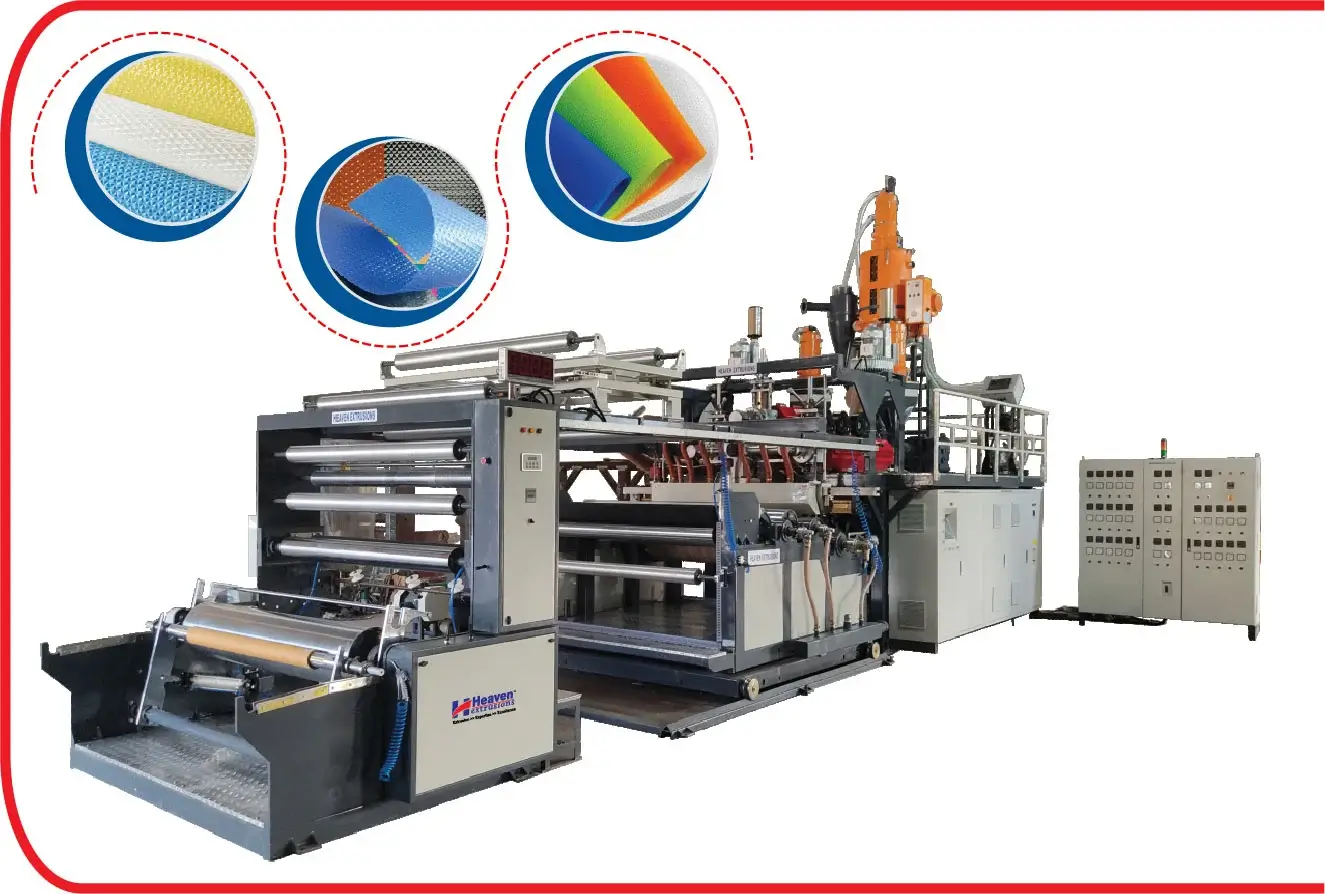

Heaven Cast Embossed film Extrusion line produces flat or embossed films for, Automobile industries, Tire Industries, packing industries, hygiene and medical applications. The most optimized design of extruder and ‘T’ die guarantees high-performance extrusion and various levels of features and automation are available to best meet your needs. The line uses extruder to convert polymers into continuous melt resin which are formed by ‘T’ die into film structure. Through such a cast film extrusion system, an embossed steel roll and silicon pressure rubber roll are installed at the casting unit of the line. When the melt resin comes out of the ‘T’ die, it is pressed onto the embossing roll by silicon roll to produce embossed film.

features :

  • Any fil width(up to 2000mm) at customer's disposable.
  • Easy to change embossing roll for various emboss patterns.
  • Very low variation of film thickness.
  • In-line film edge trim and recycling.
  • In-line extrusion coating is optional.
  • Auto film winder with different size of air shaft.

Application :

The cast embossed process has a wide range of applications, such as PE film for baby diaper, sanitary napkin, inconvenience products, pet pad, disposable bedsheet, medical dressings, grown, gloves, shoes cover, rubber release film, table cloth, shower curtain, Tire industries and many more

Technical Specification

Model Screw Diameter Die Width Film Width Film Thickness Line Speed
HECEFL-1000 ∅75 mm 1200 mm 1000 mm
HECEFL-1500 ∅90 mm 1700 mm 1500 mm 0.02-0.15 mm 100m/min
HECEFL-2000 ∅120 mm 2200 mm 2000 mm

NOTE: The Information Is Provided For The Purpose Of Guideline & Indication Only And Doesn’t Form Any Kind Of Commitments.
